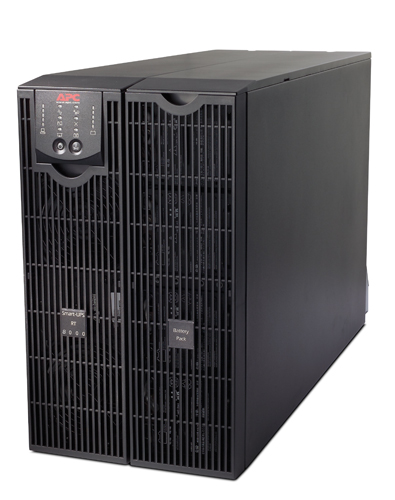

APC Smart-UPS RT 8000VA 208V
Part Number:
SURT8000XLT
Output
Output Power Capacity 6400 Watts / 8000 VA
Max Configurable Power 6400 Watts / 8000 VA
Nominal Output Voltage 208V
Output Voltage Note Configurable for 208 or 240 nominal
output voltage
Efficiency at Full Load 93%
Output Voltage Distortion Less than 3%
Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz user
adjustable +/- 0.1
Crest Factor 3 : 1
Waveform Type Sine wave
Output Connections
|
(1) Hard Wire 3-wire (2PH + G) |
|
|
(2) NEMA L6-20R |
|
|
(2) NEMA L6-30R |
|
Bypass : Internal Bypass (Automatic and Manual)
Input
Nominal Input Voltage 208V
Input Frequency 50/60 Hz +/- 5 Hz (auto sensing)
Input Connections
|
Hard Wire 3-wire (2PH + G) |
|
Input voltage range for main operations 160 - 280V
Other Input Voltages 240
Input Total Harmonic Distortion Less than 7% for full load
Batteries & Runtime
Battery Type Maintenance-free sealed Lead-Acid battery with
suspended electrolyte : leakproof
Included Battery Modules4
Typical recharge time 2.20 hour(s)
Replacement Battery
RBC44
RBC™ Quantity 2
Extended Run Options
APC Smart-UPS RT 8000VA 208V
Runtime Graph
|
Curve
|
Part
Number(s) |
|
A |
SURT8000XLT
|
|
B |
SURT8000XLT
+ (1)SURT192XLBP |
|
C |
SURT8000XLT
+ (2)SURT192XLBP |
|
D |
SURT8000XLT
+ (3)SURT192XLBP |
|
E |
SURT8000XLT
+ (4)SURT192XLBP |
Communications & Management
Interface Port(s) : DB-9 RS-232,RJ-45 10/100 Base-T,Smart-Slot
Pre-Installed SmartSlot™ Cards
AP9631
Control panel : LED status display with load and battery
bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass
Indicators
Audible Alarm : Alarm when on battery : distinctive low
battery alarm : overload continuous tone alarm
Emergency Power Off (EPO) : Yes
Surge Protection and Filtering
Filtering : Full time multi-pole noise filtering : 0.3%
IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height 17.00 inches (432 mm)
Maximum Width 10.35 inches (263 mm)
Maximum Depth 28.98 inches (736 mm)
Rack Height 6U
Net Weight 244.00 lbs. (110.91 kg)
Shipping Weight 284.00 lbs. (129.09 kg)
Shipping Height 21.75 inches (552 mm)
Shipping Width 23.50 inches (597 mm)
Shipping Depth 39.00 inches (991 mm)
Color Black
Environmental
Operating Environment 32 - 104 °F (0 - 40 °C)
Operating Relative Humidity 0 - 95%
Operating Elevation 0-10000 feet (0-3000 meters)
Storage Temperature 5 - 113 °F (-15 - 45 °C)
Storage Relative Humidity 0 - 95%
Storage Elevation 0-50000 feet (0-15000 meters)
Audible noise at 1 meter from surface of unit 55.00 dBA
Online Thermal Dissipation 1739.00 BTU/hr
Conformance
Regulatory Approvals : CSA,FCC Part 15 Class A,UL 1778
**The time to
recharge to 90% of full battery capacity following a discharge to shutdown using
a load rated for 1/2 the full load rating of the UPS.
