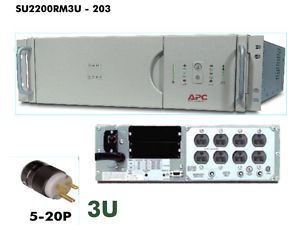

APC SMART-UPS 2200RM3U
   Our Price: $609.95

REFURBISHED APC SMART UPS 2200RM3U

All refurbished UPS's come fully tested with a 90 day replacement performance guaranteed warranty.
All of our batteries come brand new and factory fresh, with a 2 year warranty. Does not include cables, software or any accessories.

BRAND NEW BATTERIES WITH 2 YEAR WARRANTY



Model: SU2200RM3U

APC Smart-UPS 2200VA RM 3U 120V

Part Number: SU2200RM3U

Output

Output Power Capacity 1600 Watts / 2200 VA

Max Configurable Power 1600 Watts / 2200 VA

Nominal Output Voltage 120V

Output Voltage Distortion Less than 5% at full load

Output Frequency (sync to mains)

47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal

Crest Factor up to 5 : 1

Waveform Type Sine wave

Output Connections

(8) NEMA 5-15R

Input

Nominal Input Voltage 120V

Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

NEMA 5-20P

Cord Length 8 feet (2.44 meters)

Input voltage range for main operations : 92 - 147V

Input voltage adjustable range for mains operation : 86 - 154V

Batteries & Runtime

Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time 3 hour(s)

Replacement Battery RBC12

RBC™ Quantity 1

APC Smart-UPS 2200VA RM 3U 120V

Communications & Management

Interface Port(s) DB-9 RS-232,SmartSlot

Available SmartSlot™

Interface Quantity 1

Control panel LED status display with load and battery bar-graphs and On Line : On

Battery : Replace Battery : and Overload Indicators

Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO) Optional

Surge Protection and Filtering

Surge energy rating 880 Joules

Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero

clamping response time : meets UL 1449

Physical

Maximum Height 5.20 inches (132 mm)

Maximum Width 19.00 inches (483 mm)

Maximum Depth 25.00 inches (635 mm)

Rack Height 3U

Net Weight 103.00 lbs. (46.82 kg)

Shipping Weight 123.00 lbs. (55.91 kg)

Shipping Height 10.00 inches (254 mm)

Shipping Width 24.50 inches (622 mm)

Shipping Depth 37.50 inches (953 mm)

Color Beige

Environmental

Operating Environment 32 - 104 °F (0 - 40 °C)

Operating Relative Humidity 0 - 95%

Operating Elevation 0-10000 feet (0-3000 meters)

Storage Temperature 5 - 113 °F (-15 - 45 °C)

Storage Relative Humidity 0 - 95%

Storage Elevation 0-50000 feet (0-15000 meters)

Audible noise at 1 meter

from surface of unit

47.00 dBA

Online Thermal Dissipation 275.00 BTU/hr

Conformance

APC Smart-UPS 2200VA RM 3U 120V
